Reorganize LED wall images tilted

Tristan

Hi,

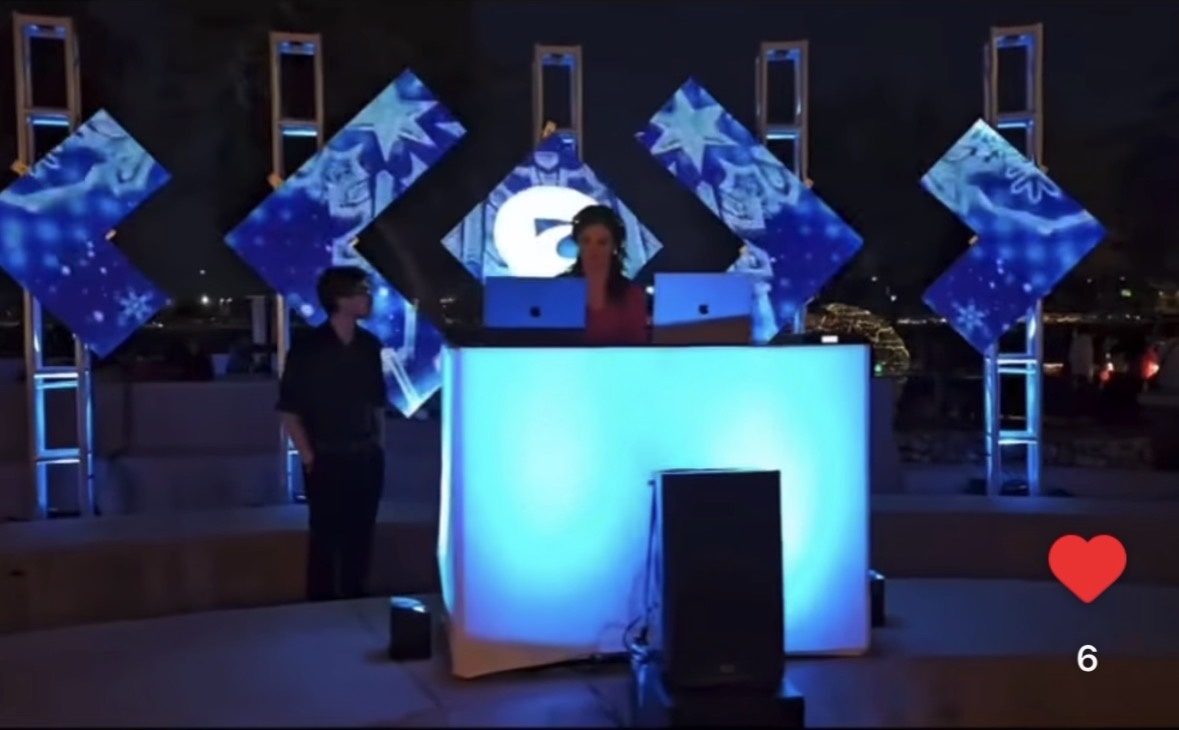

I’d like to reproduce a setup with an LED wall that is tilted (see photo). My goal is to have an image that appears straight even though the LED panels are angled, so I need to tilt my image in software. In addition to that, I want to send one feed across several separated screen sections. I currently get a satisfying result by doing this in After Effects and creating my pre-configuration there, but I’d like to do it in Millumin to be more flexible with the media I use. How can I reorganize the portions of the image to straighten them again so they can be sent correctly to the LED processor ?

Thanks.

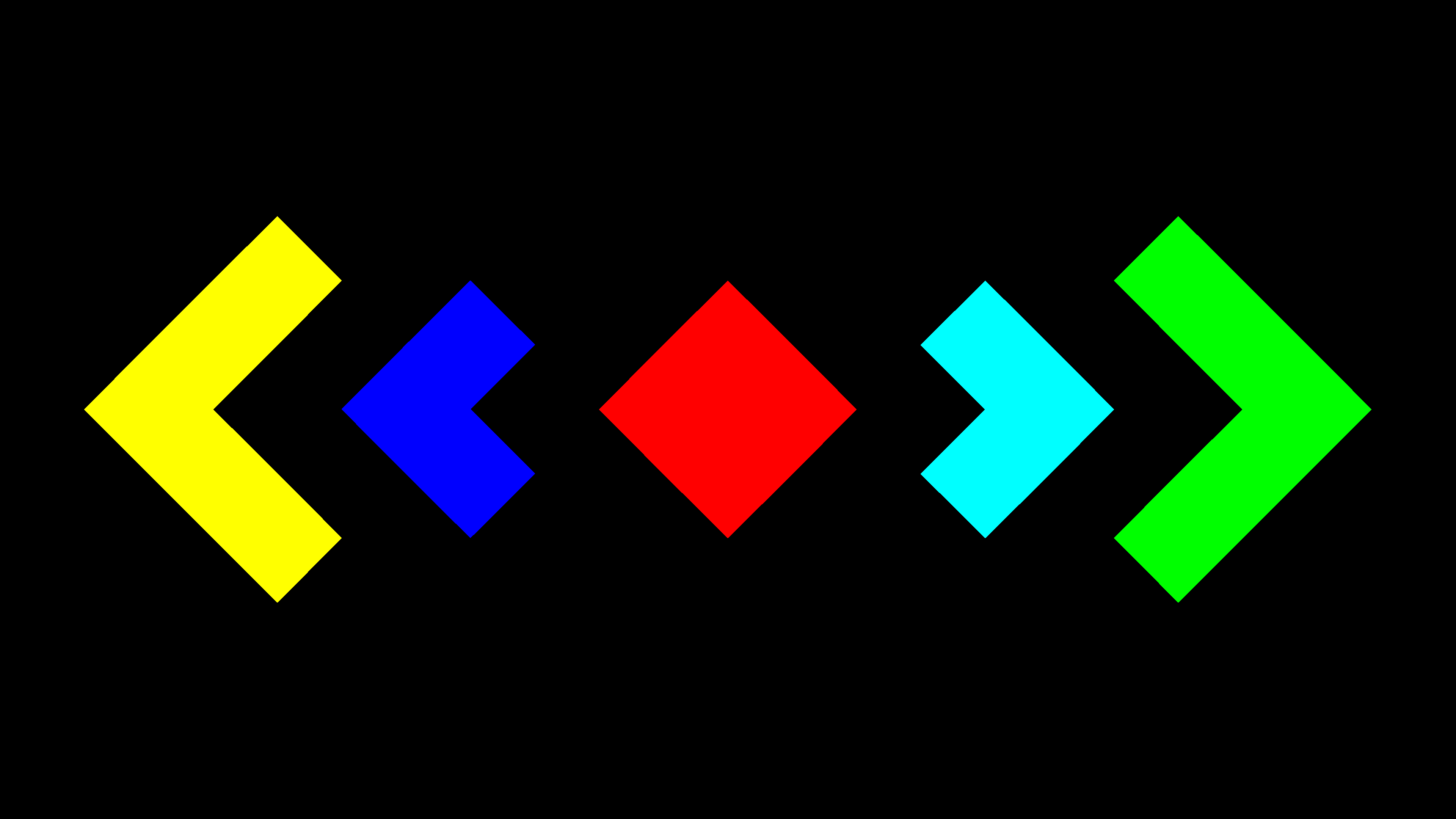

paterne test led screen triangle.svg

Millumin

Hello @Tristan,

A simple solution would be to use a video-routing, see attached project :

project.millumin

Of course, you can use various tools (more video-routing, masks, perspective mapping, ...) to complexify this approach depending on your needs.

Best. Philippe
